MBM Triumph 5260 Automatic Programmable VRCUT Ready Cutter

TriumphSKU: CU0489V

Price:
Sale price$17,838.00
 More payment options


Request Special Pricing

Description

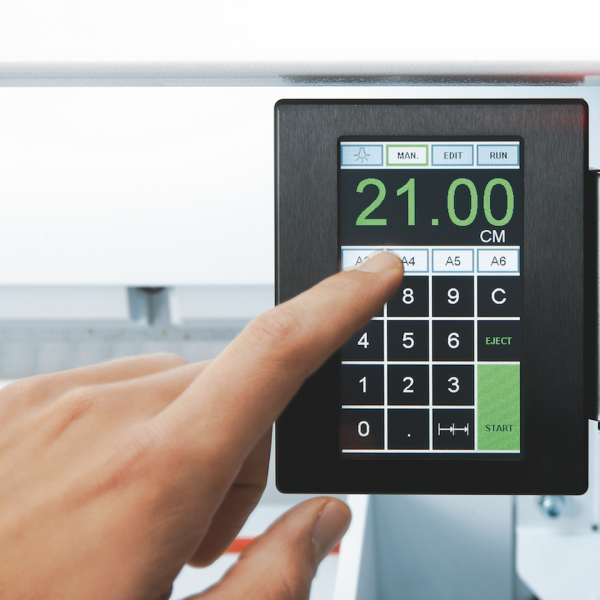

Enhance your cutting efficiency with the MBM Triumph 5260 Automatic Programmable VRCUT Ready Cutter. The 20 3/8” cut length combined with an electric blade and clamp drive allows smooth cutting of paper and other material. The paper cutter handles various paper sizes and thicknesses and effortlessly cuts through 3-inch thick paper stacks. The digital measurement display provides accurate measurements in centimeters or inches, with multilingual operator guidance for ease of use.

The MBM Triumph 5260 is pre-programmed for standard paper sizes, and the memory key enables quick access to frequently used cutting settings. The automatic paper cutter can store up to 99 cutting programs with 99 steps in each program, allowing for efficient and repeatable cutting processes. The automatic SET function ensures precise reference measurement, while the EJECT function conveniently pushes out cut materials.

This heavy-duty paper cutter is equipped with a comprehensive SCS safety package to protect the operator during the cutting process and while performing routine maintenance. The IR light beam safety curtain completely covers the work area to ensure the highest level of operator safety. The LED optical cutting line and 3-step LED front table illumination provide clear visibility during cutting operations. The cutter also features dual side guides on the front and rear tables for added stability and accuracy.

Specifications

Type VRCUT Ready Cutters
Cutting Height 3 inch
Cutting Width 21 5/8” inch
Narrow Cut 5560: 1 1/4 inch , 5560 LT: 2 3/8 inch
Length Behind Blade 25 1/2 inch
Clamp Type Automatic
Blade Drive Electric
Back Gauge Electric
Safety Element IR light Beam Safety Curtain
Electrical Requirements 115 V, 60 Hz (20 Amp. Dedicated Line Required)
Motor Output 2 HP
Dimensions (D x W x H) 44 x 33 7/82 x 51 inch
Weight 657 lb

Resources

Datasheet: PDF File

Manual: PDF File
